Using Variables in Embedded

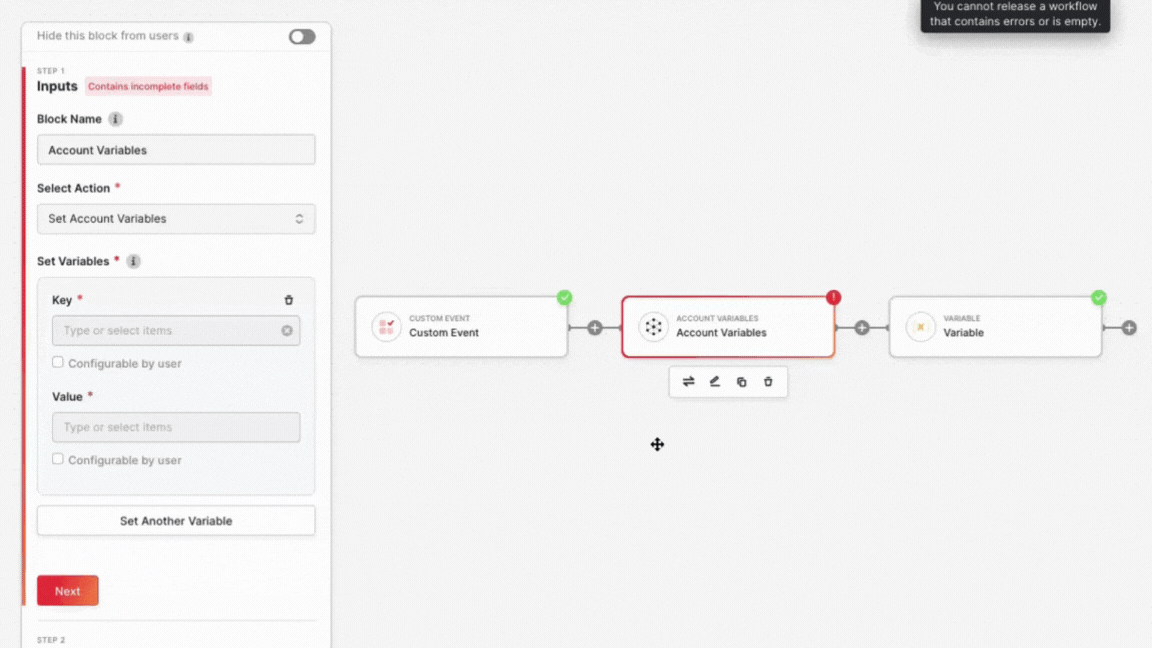

Account Variables are stored at the Alloy Account Level, functioning like global variables in programming. These values can be updated and are persistent. To choose from existing variables, click the key field, or create a new one by entering the name. For value, define a static string, json, or select other data from your workflow Add more variables using Set Another Variable, click Next, Refresh Output Data, and Show Output Data to display your variables in a JSON format

​
Variables

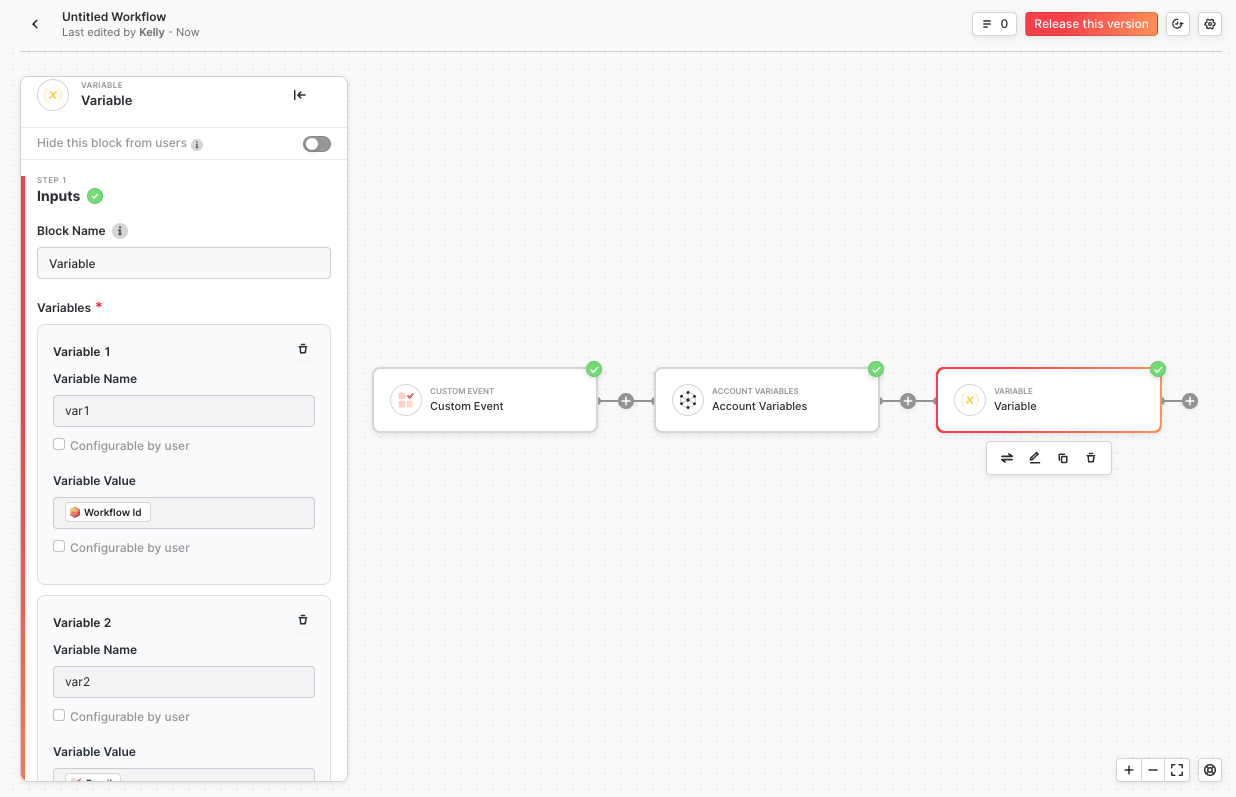

Regular variables exist only within a workflow execution context. They are created at runtime and destroyed after the workflow finishes executing. Create Variables similarly to account variables; however, you won’t be able to choose from “existing” variables since they only exist at runtime.

​
Editing Variables

When testing workflows in the Workflow canvas, you can edit the variables used within each connector directly. To access the variable editor, hover over the variable name in the inputs step of your connector. This will reveal a dialog with details about the selected connector, including the path, value, and label.

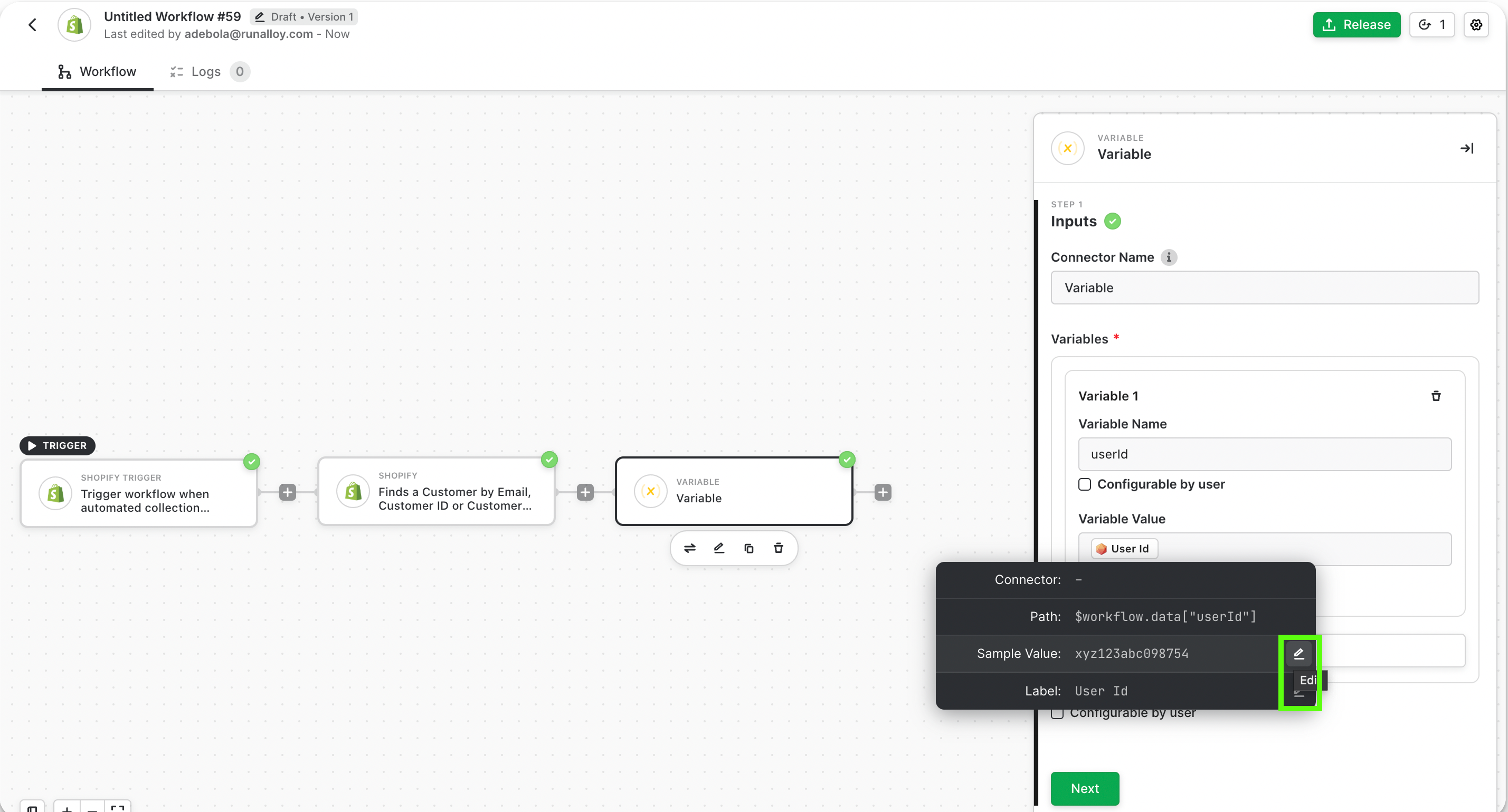

Editing variables in the workflow canvas
To edit a variable, click the edit icon next to the variable you want to modify. Enter the new value and press the return key to save. An edited tag will appear next to any variables that have been previously modified. Your new variable can now be used while testing your workflow and will be visible in the output step of the selected connector.
